Description

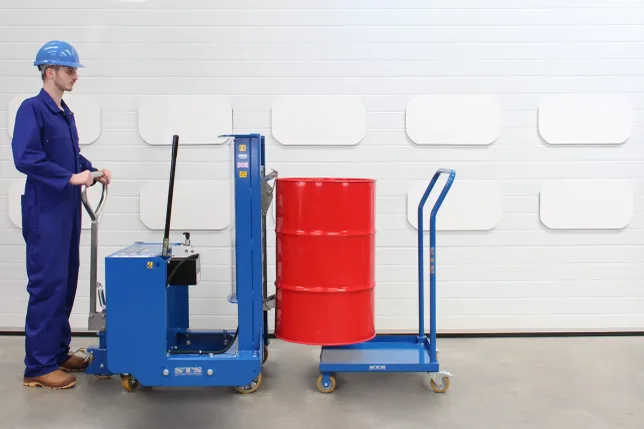

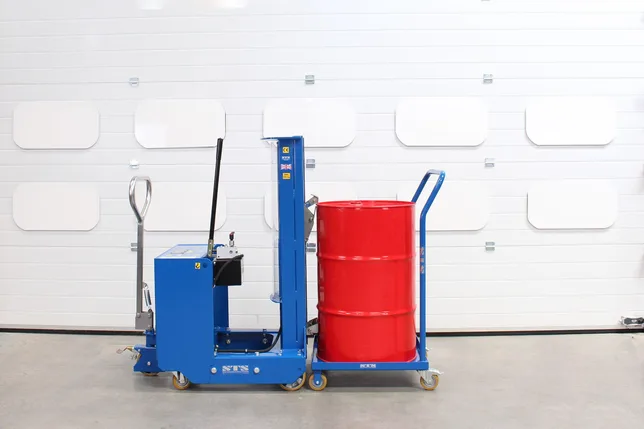

A complete solution for moving drums around workplaces with minimal manual labor, our Drum Dolly with Handle equipment can handle up to drums of 220 litres on an average. You can load the dolly using our drum lifters, drum rotators or other suitable drum handlers. Made from mild steel, it also comes with a grit blasted and power catch finish. There is also another variant that is made of 304-grade stainless steel for those who seek better durability and performance.
- Low-profile circular platform: Provides stable support for drums

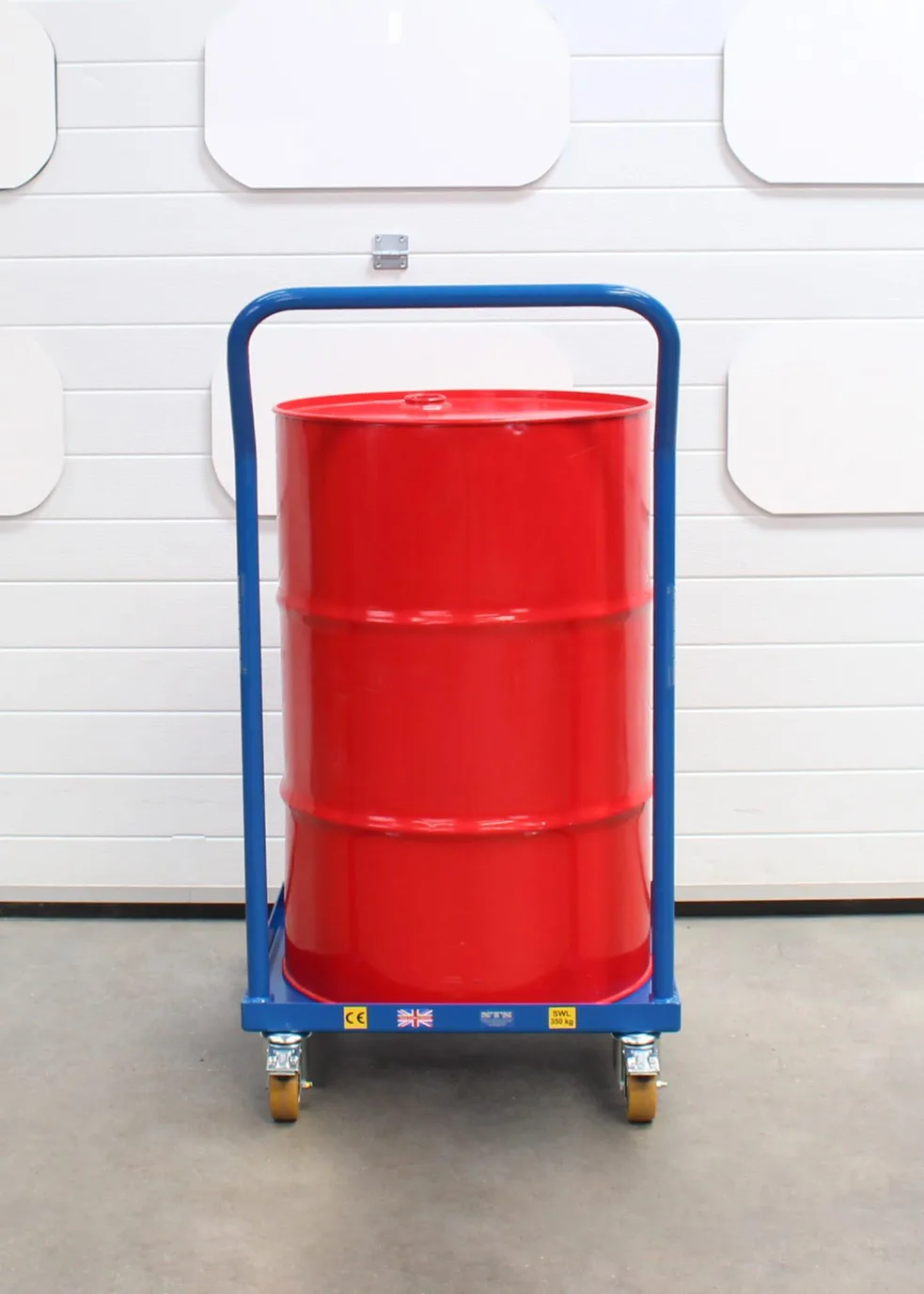

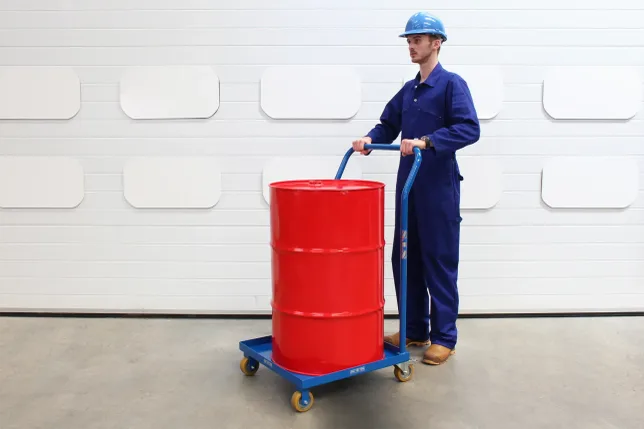

- Integrated handle for better control: Enables easy pushing, pulling, and steering
- Heavy-duty casters: Smooth and effortless movement
- Durable construction: Suitable for regular industrial use
- Easy and ergonomic operation: Reduces manual effort and improves safety
- Warehouse and storage handling: Moving drums between locations
- Workshops and industrial areas: Frequent repositioning of drums
- Loading and unloading zones: Assisting in ground-level drum movement
- Manufacturing environments: Supporting day-to-day material handling
- General industrial use: Safe and efficient short-distance drum transport
Specifications
DDL200
DDL200
Drum Dolly with Handle
Rated capacity
350kg
Drum compatibility
All drums up to 220 litres in volume (600mm in diameter)
Manual force required to operate
Less than 20kg
Construction
Mild steel, grit blasted
Surface Finish
Primer and polyester powder coated
Unit colour
RAL 5010 (blue)

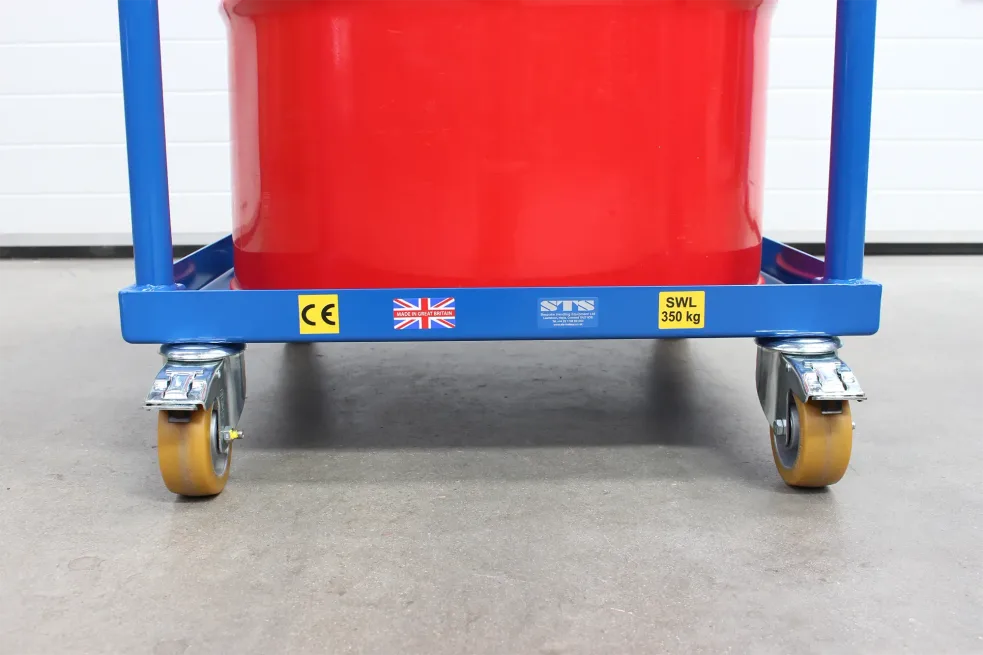

Wheel Arrangement
Fixed front wheels prevent sideways movement, rear braked castors allow easy control
Ergonomic push handle
Yes, safer than pushing drum
Wheel Specification
Aluminium-centred wheels with polyurethane tyre and precision bearings
Compliance
CE / UKCA
DDL200-Ex
DDL200-Ex
Atex Drum Dolly with Handle
Rated capacity
350kg
Drum compatibility
All drums up to 220 litres in volume (600mm in diameter)
Manual force required to operate
Less than 20kg
Construction
Mild steel, grit blasted
Surface Finish
Primer and polyester powder coated
Unit colour
RAL 5010 (blue)
Wheel Arrangement
Fixed front wheels prevent sideways movement, rear braked castors allow easy control
Ergonomic push handle
Yes, safer than pushing drum
Wheel Specification
Aluminium-centred wheels with conductive polyurethane tyre and precision bearings
Compliance
EC Machinery Directive 2006/42/EC
ATEX Directive 2014/34/EU
Zones 1, 2, 21 and 22 CE Ex II 2 G D
