Description
Our Pneumatic Drum Lifters have air powered hydraulic functions that make hazardous area drum decanting safe and efficient. It offers a powered drum clamp mechanism along with a forward rotation that helps you push efficiency and faster completion of tasks. It can also handle a variety of drum sizes and is a fully adjustable, low maintenance equipment that offers a life span of 20+ years.
- Pneumatic (air-powered) lifting system
Uses compressed air for smooth, reliable operation - ATEX-certified design
Safe for use in flammable and hazardous environments - Power clamp gripping mechanism
Securely holds the drum during lifting and movement - Lift and transport functionality
Enables efficient drum handling in one unit - Spark-free operation
Ideal for handling volatile or sensitive materials - Mobile design with wheels
Easy maneuverability across the workspace - Compatible with standard drum types
Suitable for steel, plastic, or fiber drums
- Hazardous and ATEX-zoned areas
Safe drum handling in explosive environments - Chemical and process industries
Handling volatile or sensitive materials - Oil, fuel, and solvent operations
Transporting flammable liquids safely - Manufacturing and production lines
Supplying drums to process areas - Warehouse and storage handling
Moving drums within facilities - General industrial use
Efficient and safe drum lifting and transport
Specifications
STP01-RRH01-Ex
STP01-RRH01-Ex

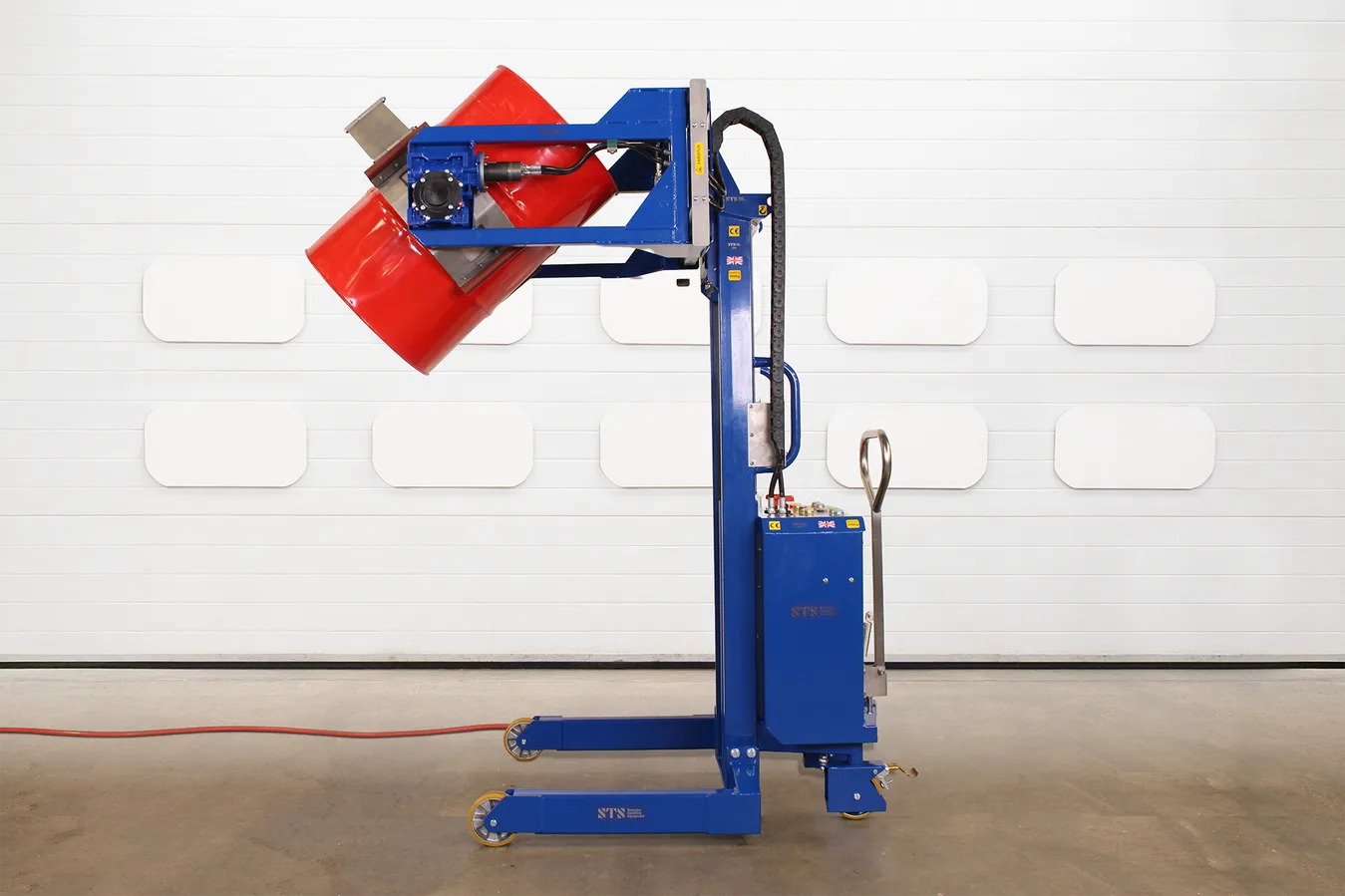

Pneumatic Drum Lifter (ATEX)
Safe working load (SWL)
300kg
Functions
Powered lift/lower, power clamp, power rotation, manual push/pull
Power details
Air powered – requires min: 400L/min, optimum: 760L/min at 6 bar with 13mm flexible air hose
Controls

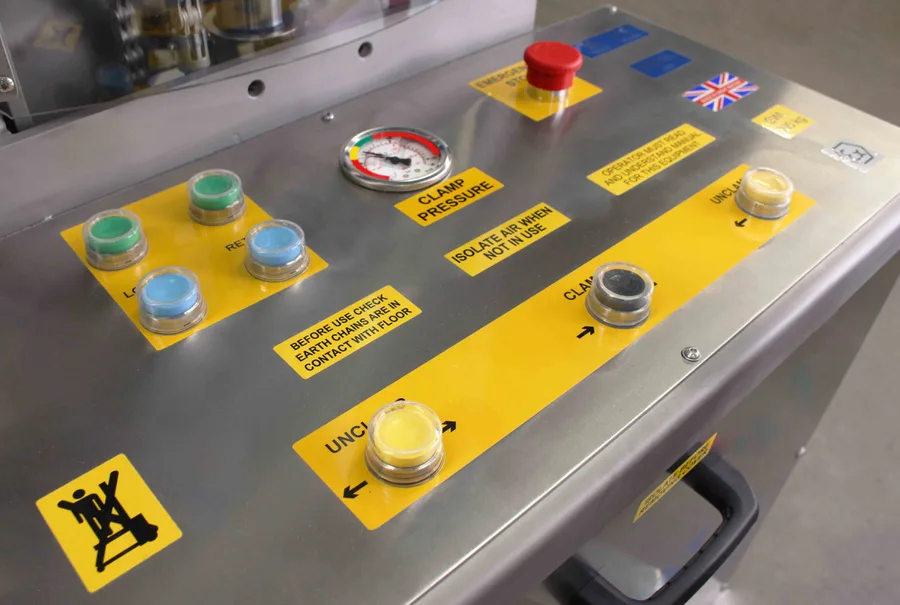

Pneumatic push-button controls and emergency stop
Lift height
1500mm
Tipping clearance
1470mm at 15° tip angle / 1400mm at 30° tip angle (205 litre drum)
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
Clamping head
Hydraulic constant-tension clamping head with pressure gauge for handling all drum types – ‘hands off’ drum handling solution
Powered Rotation
Rotation via powered gearbox assembly, fully invert drums to 180° to emply the contents
Construction
Mild steel construction with stainless steel clamping pads
Metal preparation
Grit blasted mild steel. vibratory polished stainless steel parts
Surface finish
Primer and polyester powder-coated mild steel, stainless steel is smooth and clean
Powder coat colour
RAL 5010 (blue)
Guarding
Anti-static polycarbonate shatterproof clear guarding
Leg dimensions
Inside straddle width 850mm, total outside width 1080mm
Front wheels
Two fixed 160mm wheels, aluminium centred with electrically conductive polyurethane tyres and precision bearings
Rear wheels
Two tiller steered 160mm wheels, aluminium centred with electrically conductive polyurethane tyres and precision bearings
Noise
Less than 76 dBA
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
